the stage
Thunder's flagship virtual production stage.

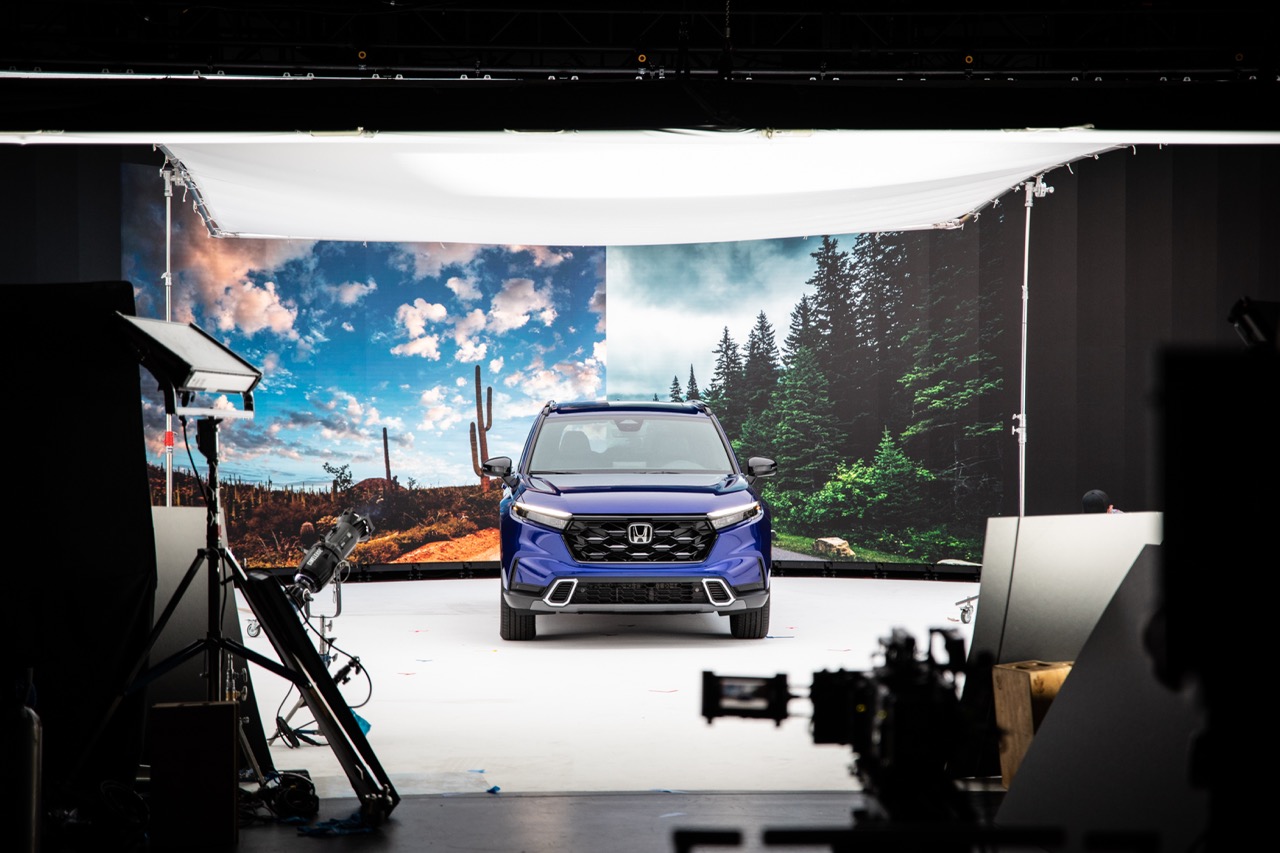

Stage 14 is built around an 8K LED wall with pixel-perfect tracking — the combination most commonly spec'd for high-end car work, fashion, and virtual production finishing. The floor has been poured for vehicle access and the grid pre-rigged for 30,000 lbs distributed.

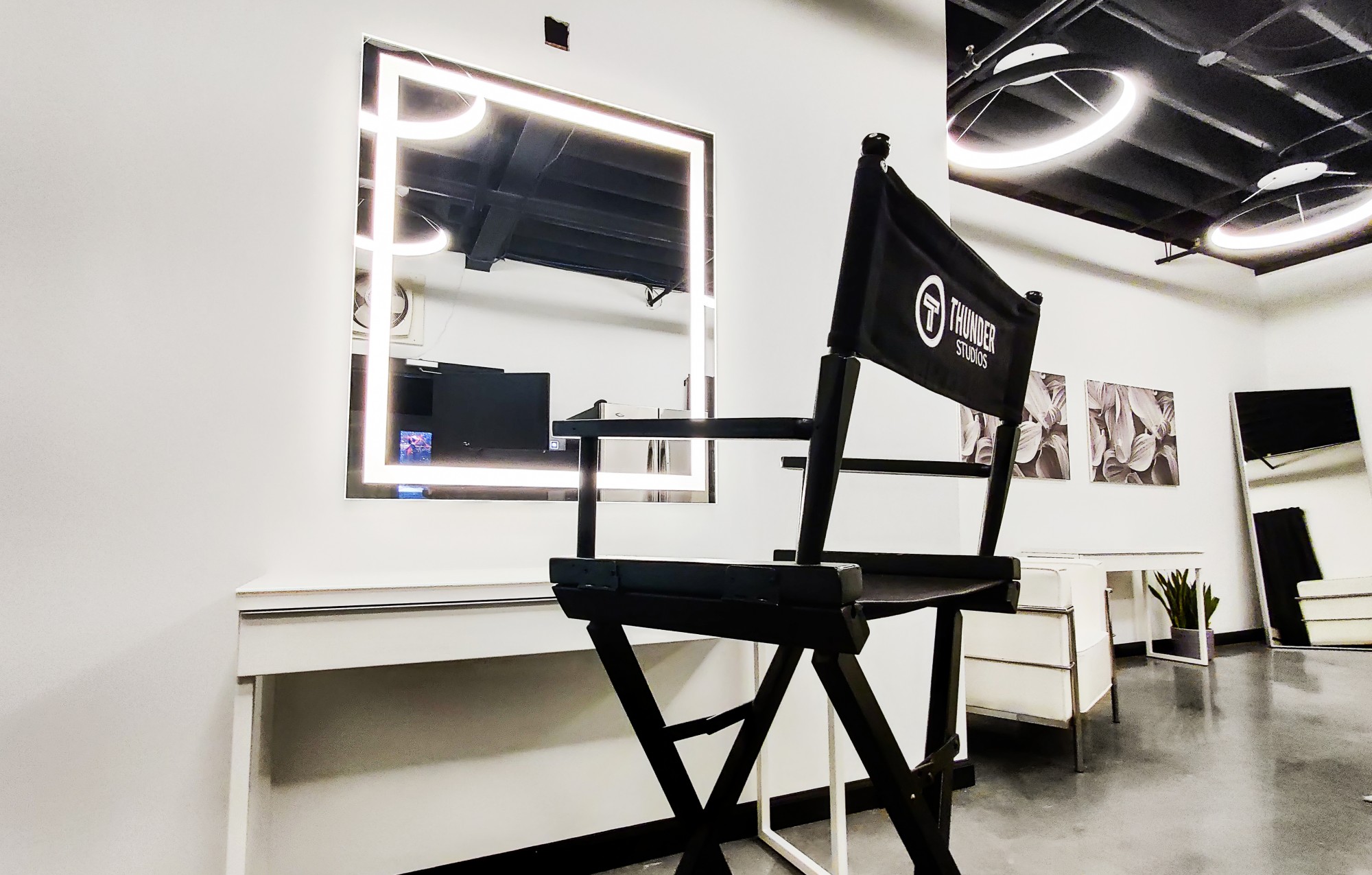

Productions arrive, plug in, and shoot — no retrofit week. Adjacent suites handle talent, wardrobe, and director's monitor without ever leaving the north end of the lot. Mezzanine production offices and a private door-access suite give long-running shows a permanent home base.
inside the stage
Gallery
technical specifications
Stage information
Specifications
Dimensions
W60
Square footage
15,000 sq ft
CYC INFO
Floor type
Soundproof
Partially
Ethernet
Vehicle access
Gantry
Full Motion Gantry System
Grid CAPACITY
Full Grid
INCLUDED SPACES
Events
Event capable
Audience capacity
2,500 standing · 1,250 theater · 300 banquet
Additional details

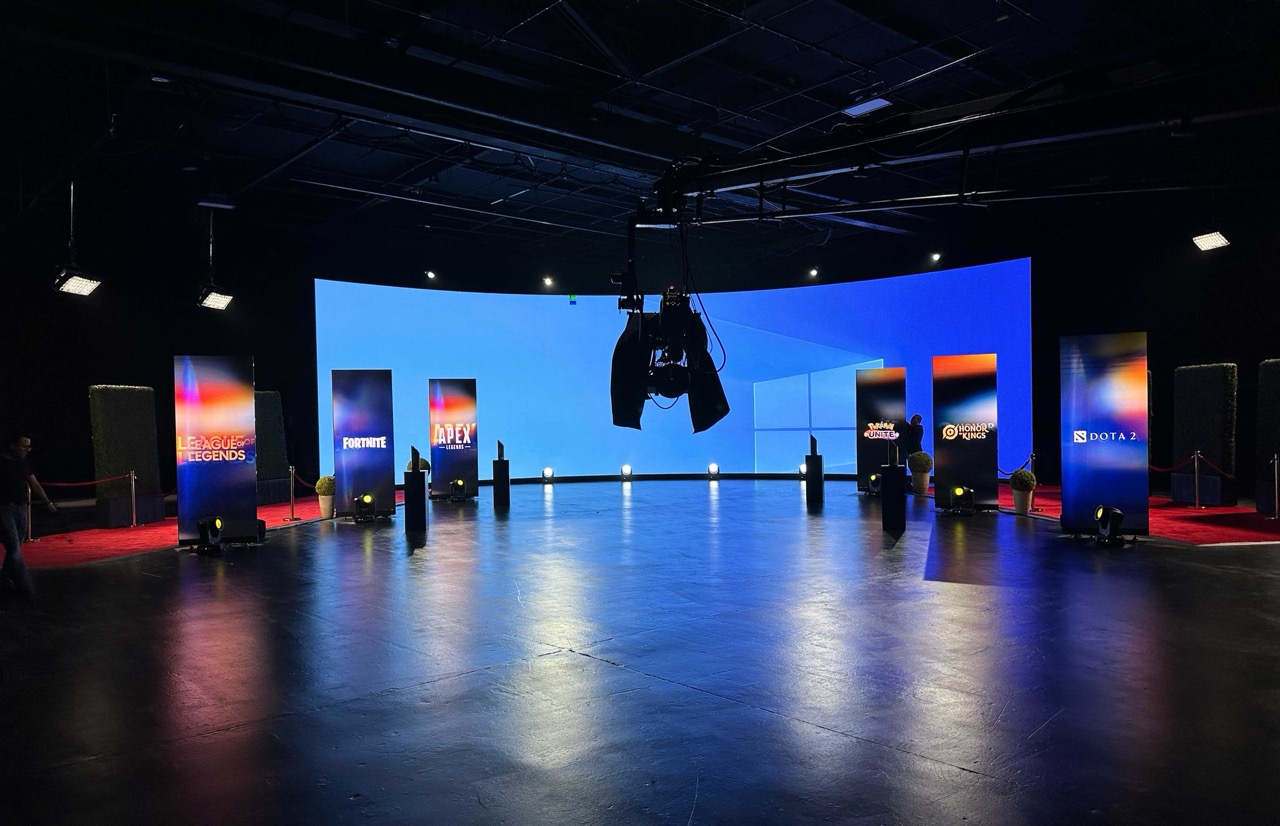

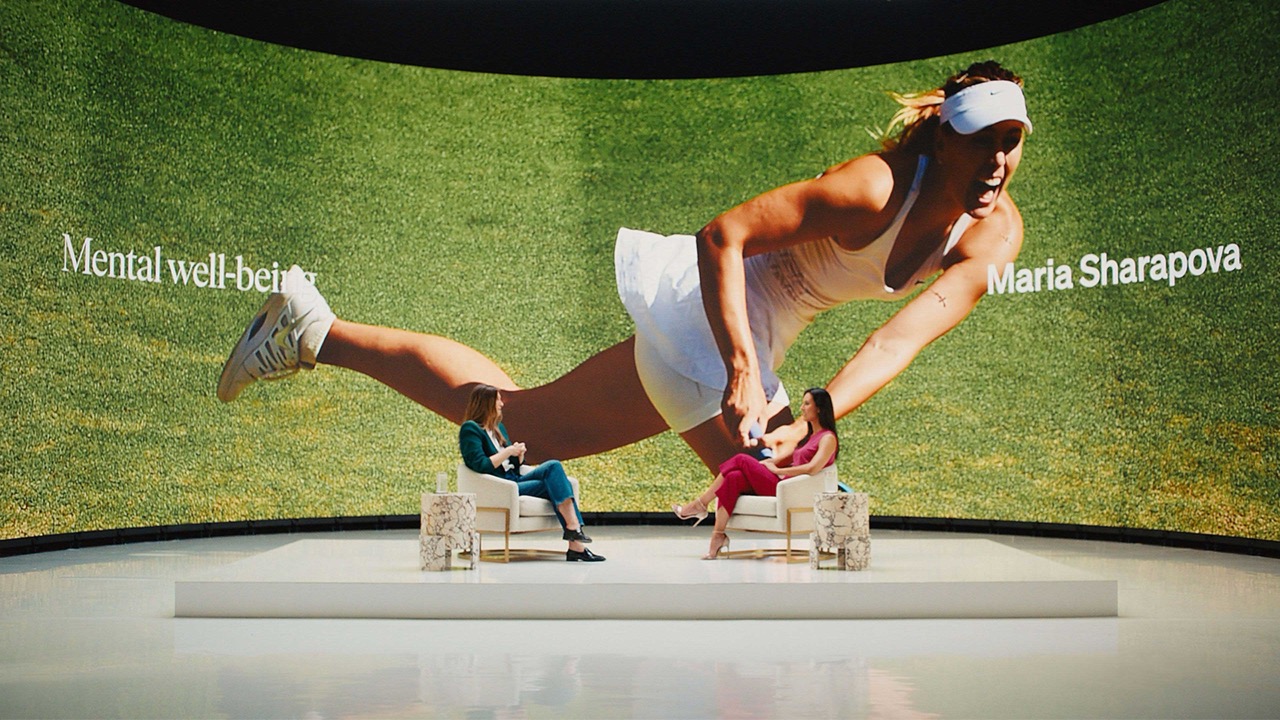

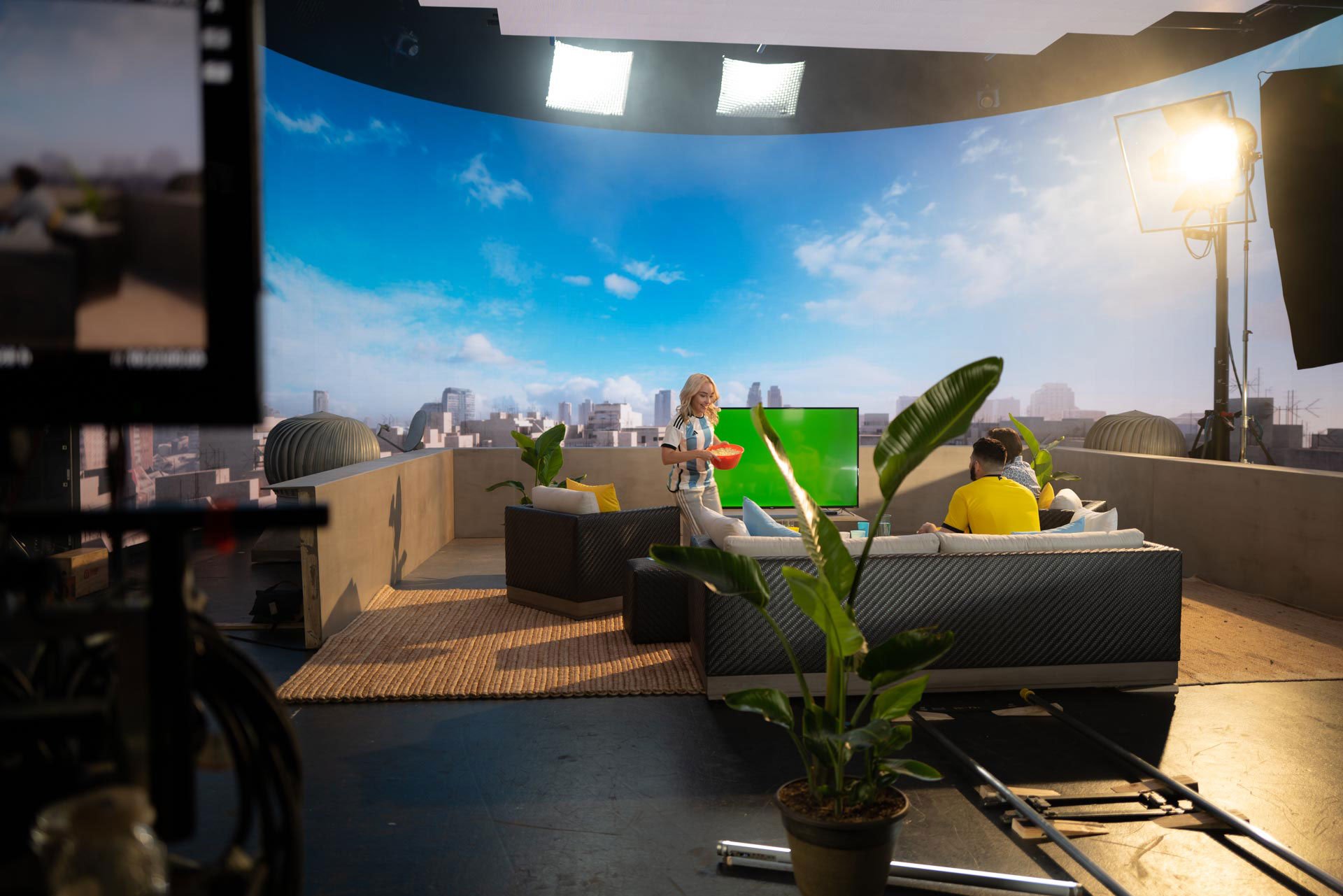

LED Wall — Active Coverage
Continuous wraparound configuration — two curved sections meeting a flat center, no gaps. Total linear LED coverage of approximately 67 ft, standing 14.5 ft tall (14 ft LED + 6" floor gap).
- Flat center: 6 × 6 tiles (500mm each) ≈ 9'10" × 9'10"
- Curved sections: 28'6" wide × 14.5' tall, one each side
- Resolution: 8K · 7,600 × 2,000 px · 10-bit
- Tiles: Absen PL2.5 · 2.5mm pitch · 1,500 NITS
- Processing: Novastar · nDisplay
- Camera tracking: stYpe RedSpy optical
Working Distances
- Clear depth: 66'2" from wall
- Back offset: 10 ft
- Side offsets: 12 ft each
Where on site
[ Floor plan SVG · Stage 14 highlighted ]
